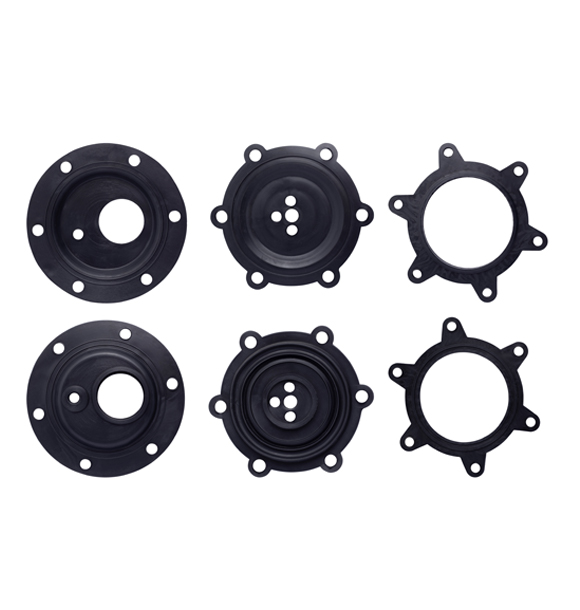

Diaphragms

Rubber diaphragms are flexible membranes made from rubber or elastomeric materials designed to separate two chambers or compartments while allowing for movement or pressure regulation. They play a crucial role in controlling the flow of fluids or gases and are widely used in various mechanical and industrial applications.

Types of Diaphragms supplied by Talbros-

1. Flat Diaphragms:

• Description: Simple, flat membranes used in applications requiring minimal movement.
• Applications: Often used in basic valve and pump designs.

2. Bellow Diaphragms:

• Description: Flexible, bellows-shaped designs that allow significant movement and displacement.
• Applications: Used in applications needing a wide range of motion, such as in pressure sensors and actuation systems.

3. Piston Diaphragms:

• Description: Designed to move in a reciprocating manner, typically used in diaphragm pumps.
• Applications: Found in fluid transfer applications where consistent flow is required.

4. Convoluted Diaphragms:

• Description: Feature folds or convolutions to enhance flexibility and allow greater movement.
• Applications: Ideal for high-displacement applications, commonly used in pumps and valves.

5. Dome Diaphragms:

• Description: Curved design that can flex in multiple directions, offering high sensitivity to pressure changes.
• Applications: Used in pressure gauges and sensitive measuring devices.

6. Multi-Layer Diaphragms:

• Description: Composed of multiple layers of materials, providing enhanced performance and durability.
• Applications: Suitable for demanding environments, such as chemical processing and high-temperature applications.

7. Custom Molded Diaphragms:

• Description: Tailored designs to meet specific application requirements
• Applications: Used in specialized equipment across various industries, ensuring optimal fit and performance.
